Feature - Map Service

URL	`http://<layer-url>/<featureId>`
Parent Resource	Layer
Child Resources	Attachment Infos, HTML Popup
Required Capability	Data

Description

The feature resource represents a single feature in a layer in a map service.

The feature resource has 2 child resources:

Attachment Infos: Returns information about attachments associated with this feature. This resource is available only if the layer has advertised that it has attachments.
HTML Popup: Returns information about the HTML popup associated with this feature.

New in 10.1

Support for returnZ and returnM was added for feature resource. Default value for returnZ and returnM is false.
Support for gdbVersion parameter was added. Use this parameter to specify the geodatabase version to query.

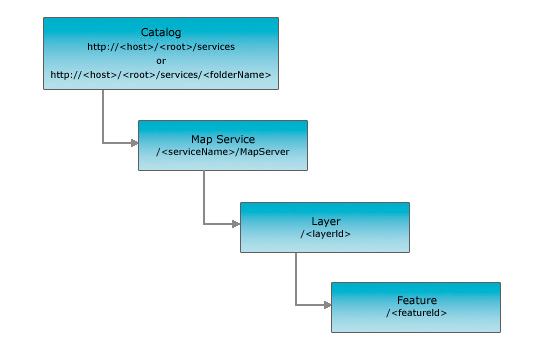

Resource Hierarchy

Feature

Parameters

Parameter	Details
f	Description: The response format. The default response format is html. Values: html \| json
returnZ	//This option was added at 10.1 Description: If `true`, Z values will be included in the results if the features have Z values. Otherwise Z values are not returned. The default is `false`.
returnM	//This option was added at 10.1 Description: If `true`, M values will be included in the results if the features have M values. Otherwise M values are not returned. The default is `false`.
gdbVersion	//This option was added at 10.1 Description: GeoDatabase version to query. This parameter applies only if `hasVersionedData` property of the service and `isDataVersioned` property of the layer(s) queried are `true`. If this is not specified, query will apply to published map's version. Syntax: gdbVersion=<geodatabase version> Example: gdbVersion=sde.USER1

Example Usage

Example 1: http://sampleserver3.arcgisonline.com/ArcGIS/rest/services/Hurricanes/NOAA_Tracks_1851_2007/MapServer/0/1

JSON Response Syntax

{ "feature" : <feature> }

JSON Response Example

{
  "feature" :
  {
    "attributes" : {
      "OBJECTID" : 1,
      "BTID" : 1,
      "NAME" : "NOTNAMED",
      "LAT" : 28,
      "LONG" : -94.8,
      "WIND_KTS" : 80,
      "PRESSURE" : 0,
      "CAT" : "H1",
      "BASIN" : "North Atlantic",
      "TRACK_DATE" : -3740169600000,
      "Shape_Length" : 0.600000000000023
    }
    ,
    "geometry" :
    {
      "paths" :
      [
        [
          [-94.7999999999999, 28.0000000000001],
          [-95.3999999999999, 28.0000000000001]
        ]
      ]
    }
  }
}
