| URL | http://<feature-url>/htmlPopup |
Parent Resource | Feature |
|---|---|
| Required Capability | Query |
Description
The htmlPopup resource provides details about the HTML popup authored by the user using ArcGIS Desktop.
This resource is available when a layer resource's htmlPopupType is not esriServerHTMLPopupTypeNone.
New in 10.1
- Support for
gdbVersionparameter was added. Use this parameter to specify the geodatabase version to query.

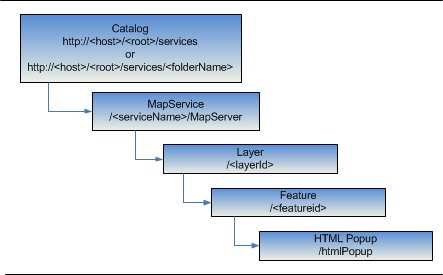

Resource Hierarchy
Parameters
| Parameter | Details |
|---|---|
| f | Description: The response format. The default response format is html. Values: html | json |
| gdbVersion |
//This option was added at 10.1 Description: GeoDatabase version to query. This parameter applies only if hasVersionedData property of the service and isDataVersioned property of the layer(s) queried are true. If this is not specified, query will apply to published map's version. Syntax: gdbVersion=<geodatabase version> Example: gdbVersion=sde.USER1 |
Example Usage
Example 1:
http://sampleserver3.arcgisonline.com/ArcGIS/rest/services/Petroleum/StantonCountyKSLeases/MapServer/0/1/htmlPopupJSON Response Syntax
{
"htmlPopupType" : "<esriServerHTMLPopupTypeNone | esriServerHTMLPopupTypeAsURL | esriServerHTMLPopupTypeAsHTMLText>",
"content": "<htmlContent>"
}
JSON Response Example
{
"htmlPopupType" : "esriServerHTMLPopupTypeAsHTMLText",
"content": "A <b>Sample HTML</b> pop up."
}
