| URL | http://<dynamic-layer-url>/<featureId> |
|---|---|
| Parent Resource | Dynamic Layer |
| Child Resources | Attachment Infos, HTML Popup |
| Required Capability | Data |
Description
This resource is supported from 10.1 onwards.
The feature resource represents a single feature in a dynamic layer in a map service.
The feature resource has 1 child resource:
- Attachment Infos: Returns information about attachments associated with this feature. This resource is available only if the layer has advertised that it has attachments.

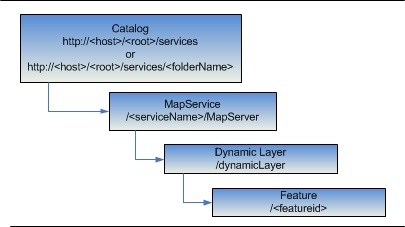

Resource Hierarchy
Parameters
| Parameter | Details |
|---|---|
| f | Description: The
response format. The default response format is html. Values: html | json |
| layer | Description: Dynamic layer / table source definition.
Note:
{
"id": <layerOrTableId>,
"source": <layer source>
}
{
"id": 101,
"source":
{
"type": "mapLayer",
"mapLayerId": 0,
"gdbVersion": "SDE.DynamicLayers"
}
}
|
| returnZ |
Description: If true, Z values will be included in the results if the features have Z values.
Otherwise Z values are not returned. The default is false.
|
| returnM |
Description: If true, M values will be included in the results if the features have M values.
Otherwise M values are not returned. The default is false.
|
Example Usage
Example 1: Feature resource for feature in a dynamic layer (feature with objectId 1 from mapLayer with id 3):
JSON Response Syntax
{ "feature" : <feature> }
JSON Response Example
{
"feature" :
{
"attributes" : {
"OBJECTID" : 7,
"BTID" : 1,
"NAME" : "NOTNAMED",
"LAT" : 28,
"LONG" : -94.8,
"WIND_KTS" : 80,
"PRESSURE" : 0,
"CAT" : "H1",
"BASIN" : "North Atlantic",
"TRACK_DATE" : -3740169600000,
"Shape_Length" : 0.600000000000023
}
,
"geometry" :
{
"paths" :
[
[
[-94.7999999999999, 28.0000000000001],
[-95.3999999999999, 28.0000000000001]
]
]
}
}
}
