Raster Key Properties

URL	`http://<rastercatalogitem-url>/info/keyProperties`
Parent Resource	Raster Info
Required Capability	Image,Catalog

Description

This resource is supported from 10.1 onward.

The raster key properties resource returns key properties of the associated raster in an image service. The output format is always json.

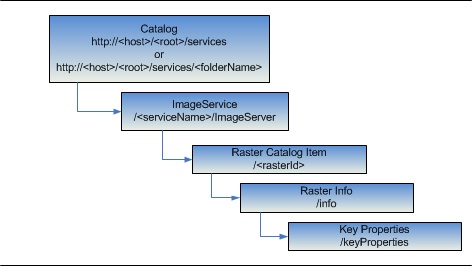

Resource Hierarchy

Parameters

Example Usage

Example 1: Return key properties of a multispectral raster in a Landsat image sevice.

http://myserver.arcgisonline.com:port/arcgis/rest/services/Landsat/ImageServer/1/info/keyProperties

JSON Response Syntax

{
  "keyproperty1Name":"value1",
  "keyproperty2Name":value2
}

JSON Response Example

{
    "DatasetTag": "MS",
    "ProductName": "L1G",
    "ParentRasterType": "Landsat 7 ETM+",
    "ParentTemplate": "Multispectral",
    "CORRECTION_METHOD_GAIN_BAND1": "CPF",
    "CORRECTION_METHOD_GAIN_BAND2": "CPF",
    "CORRECTION_METHOD_GAIN_BAND3": "CPF",
    "CORRECTION_METHOD_GAIN_BAND4": "CPF",
    "CORRECTION_METHOD_GAIN_BAND5": "CPF",
    "CORRECTION_METHOD_GAIN_BAND61": "CPF",
    "CORRECTION_METHOD_GAIN_BAND62": "CPF",
    "CORRECTION_METHOD_GAIN_BAND7": "CPF",
    "CORRECTION_METHOD_GAIN_BAND8": "CPF",
    "CORRECTION_METHOD_BIAS": "IC",
    "BAND1_GAIN": "H",
    "BAND2_GAIN": "H",
    "BAND3_GAIN": "H",
    "BAND4_GAIN": "L",
    "BAND5_GAIN": "H",
    "BAND6_GAIN1": "L",
    "BAND6_GAIN2": "H",
    "BAND7_GAIN": "H",
    "BAND8_GAIN": "L",
    "BAND1_GAIN_CHANGE": "0",
    "BAND2_GAIN_CHANGE": "0",
    "BAND3_GAIN_CHANGE": "0",
    "BAND4_GAIN_CHANGE": "0",
    "BAND5_GAIN_CHANGE": "0",
    "BAND6_GAIN_CHANGE1": "0",
    "BAND6_GAIN_CHANGE2": "0",
    "BAND7_GAIN_CHANGE": "0",
    "BAND8_GAIN_CHANGE": "0",
    "BAND1_SL_GAIN_CHANGE": "0",
    "BAND2_SL_GAIN_CHANGE": "0",
    "BAND3_SL_GAIN_CHANGE": "0",
    "BAND4_SL_GAIN_CHANGE": "0",
    "BAND5_SL_GAIN_CHANGE": "0",
    "BAND6_SL_GAIN_CHANGE1": "0",
    "BAND6_SL_GAIN_CHANGE2": "0",
    "BAND7_SL_GAIN_CHANGE": "0",
    "BAND8_SL_GAIN_CHANGE": "0",
    "SPACECRAFT_ID": "Landsat7",
    "SENSOR_ID": "ETM+",
    "WRS_PATH": "040",
    "WRS_ROW": "032",
    "SCENE_CENTER_LAT": "+40.3323726",
    "SCENE_CENTER_LON": "-115.1056999",
    "SCENE_UL_CORNER_LAT": "+41.2879833",
    "SCENE_UL_CORNER_LON": "-115.9230556",
    "SCENE_UR_CORNER_LAT": "+40.9732455",
    "SCENE_UR_CORNER_LON": "-113.7770903",
    "SCENE_LL_CORNER_LAT": "+39.6759962",
    "SCENE_LL_CORNER_LON": "-116.4087653",
    "SCENE_LR_CORNER_LAT": "+39.3713982",
    "SCENE_LR_CORNER_LON": "-114.3115203",
    "SCENE_UL_CORNER_MAPX": "590178.000",
    "SCENE_UL_CORNER_MAPY": "4571286.000",
    "SCENE_UR_CORNER_MAPX": "771181.500",
    "SCENE_UR_CORNER_MAPY": "4540791.000",
    "SCENE_LL_CORNER_MAPX": "550705.500",
    "SCENE_LL_CORNER_MAPY": "4391964.000",
    "SCENE_LR_CORNER_MAPX": "731595.000",
    "SCENE_LR_CORNER_MAPY": "4361440.500",
    "BAND1_FILE_NAME": "p040r032_7t20000713_z11_nn10.tif",
    "BAND2_FILE_NAME": "p040r032_7t20000713_z11_nn20.tif",
    "BAND3_FILE_NAME": "p040r032_7t20000713_z11_nn30.tif",
    "BAND4_FILE_NAME": "p040r032_7t20000713_z11_nn40.tif",
    "BAND5_FILE_NAME": "p040r032_7t20000713_z11_nn50.tif",
    "BAND61_FILE_NAME": "p040r032_7k20000713_z11_nn61.tif",
    "BAND62_FILE_NAME": "p040r032_7k20000713_z11_nn62.tif",
    "BAND7_FILE_NAME": "p040r032_7t20000713_z11_nn70.tif",
    "BAND8_FILE_NAME": "p040r032_7p20000713_z11_nn80.tif",
    "PROJECTION_PARAMETERS": "WGS84WGS84Center11Meters14.25057.00028.5000NUPNNUTM",
    "UTM_PARAMETERS": "+11",
    "SunAzimuth": 125.9425737,
    "SunElevation": 62.6864637,
    "QA_PERCENT_MISSING_DATA": "0",
    "CloudCover": 0,
    "PRODUCT_SAMPLES_PAN": "17296",
    "PRODUCT_LINES_PAN": "15428",
    "PRODUCT_SAMPLES_REF": "8648",
    "PRODUCT_LINES_REF": "7714",
    "PRODUCT_SAMPLES_THM": "4324",
    "PRODUCT_LINES_THM": "3857",
    "OUTPUT_FORMAT": "GEOTIFF",
    "SensorName": "Landsat-7-ETM+",
    "Band1GainSetting": 0.7787401574803149,
    "Band1BiasSetting": -6.2,
    "Band2GainSetting": 0.7988188976377953,
    "Band2BiasSetting": -6.4,
    "Band3GainSetting": 0.6216535433070867,
    "Band3BiasSetting": -5,
    "Band4GainSetting": 0.9692913385826771,
    "Band4BiasSetting": -5.1,
    "Band5GainSetting": 0.1262204724409449,
    "Band5BiasSetting": -1,
    "Band61GainSetting": 0.06708661417322834,
    "Band61BiasSetting": 0,
    "Band62GainSetting": 0.03720472440944882,
    "Band62BiasSetting": 3.2,
    "Band7GainSetting": 0.04389763779527559,
    "Band7BiasSetting": -0.35,
    "Band8GainSetting": 0.9755905511811023,
    "Band8BiasSetting": -4.7,
    "AcquisitionDate": 36720,
    "DataType": "Generic",
    "KIND": "IMAGE",
    "BAND_COUNT": 1,
    "HAS_TABLE": 0,
    "HAS_XFORM": -1,
    "TIFFTAG_XRESOLUTION": "72",
    "TIFFTAG_YRESOLUTION": "72",
    "TIFFTAG_RESOLUTIONUNIT": "2 (pixels/inch)"
}
