| URL | http://<feature-url>/htmlPopup |
|---|---|
| Required Capability | Query |
Description
The htmlPopup resource provides details about the HTML popup authored by the user using ArcGIS Desktop.
This resource is available when a layer resources htmlPopupType is not esriServerHTMLPopupTypeNone.

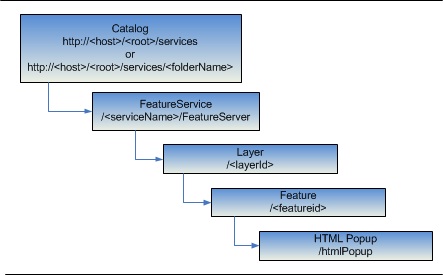

Resource Hierarchy
Parameters
| Parameter | Details |
|---|---|
| f | Description: The response format. The default response format is html. Values: html | json |
| gdbVersion |
//This option was added at 10.1 Description: GeoDatabase version to apply the edits. This parameter applies only if isDataVersioned property of the layer is true. If this is not specified, edits are made to published map’s version. Syntax: gdbVersion=<version> gdbVersion=SDE.DEFAULT |
Example Usage
Example 1: http://sampleserver3.arcgisonline.com/ArcGIS/rest/services/Hydrography/Watershed173811/FeatureServer/1/1/htmlPopUp
JSON Response Syntax
{
"htmlPopupType" : "<esriServerHTMLPopupTypeNone | esriServerHTMLPopupTypeAsURL | esriServerHTMLPopupTypeAsHTMLText>",
"content": "<htmlContent>"
}
JSON Response Example
{
"htmlPopupType" : "esriServerHTMLPopupTypeAsHTMLText",
"content": "A <b>Sample HTML</b> pop up."
}
